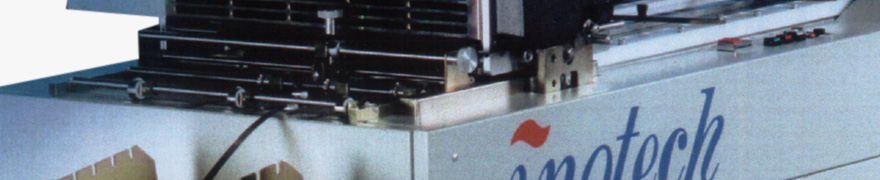

SF Series

The high-speed, hi-quality alternative for security printing

Inotech Sheet Fed Encoding and Numbering systems provide printing companies, using sheet fed machines, a fast alternative to wet-ink security encoding without compromise to quality.

Sheets are simply fed from the Input Hopper into the print unit and then to a stacker, the first sheet being at the bottom of the delivered pack.

The user-friendly system allows for fast set up times (typically 30 seconds per job) and an easy to use re-make facility. The operator simply enters the start numbers, document details and length of run then the software does the rest.

  • Proven technology – High quality MICR numbering
  • Reduced set-up – down to 30 secs per job
  • Simple re-make feature
  • Incremental total transfer ribbon plus error detection facility – less wastage
  • Variable feed rates – maximum versatility with paper sizes
  • Handles cheque, invoices and all serial numbers
  • Space-saving, free-standing design

SF Series Specifications

SF80M SF104T SF120M SF136T SF144M SF176T
Drums MICR
Split MICR/Gothic
Banded MICR/Gothic
(straight/checkerboard)
Text MICR
Split MICR/Gothic
Banded MICR/Gothic
(straight/checkerboard)
Text MICR
Split MICR/Gothic
Banded MICR/Gothic
(straight/checkerboard)
Text
Character Set E13B, CMC7 & Gothic OCRB Alphanumeric E13B, CMC7 & Gothic OCRB Alphanumeric E13B, CMC7 & Gothic OCRB Alphanumeric
Max. print positions 80 104 120 136 144 176
Min. print positions 12 in 10.4 in 15 in 13.6 in 18 in 17.6 in
Character Size (max height) 5/32 in 1/10 in 5/32 in 1/10 in 5/32 in 1/10 in
Ribbon System Total transfer
Incremental single strike
Nylon Fabric
Continuous advice self serving
Total transfer
Incremental single strike
Nylon Fabric
Continuous advice self serving
Total transfer
Incremental single strike
Nylon Fabric
Continuous advice self serving
Sheet Length 6.5 to 18 in 6.5 to 18 in 6.5 to 18 in 6.5 to 18 in 6.5 to 18 in 6.5 to 18 in
Sheet Width 8 to 12 in 8 to 12 in 8 to 18.5 in 8 to 18 in 8 to 18 in 8 to 18 in
Height 43 in 43 in 43 in 43 in 43 in 43 in
Width 30 in 30 in 30 in 30 in 30 in 30 in
Depth 79 in 79 in 79 in 79 in 79 in 79 in
Paper Single Ply, long or short grain, 85 to 95 gsm – USA 24lb MICR (other papers subject to qualification) Single Ply, long or short grain, 85 to 95 gsm – USA 24lb MICR (other papers subject to qualification) Single Ply, long or short grain, 85 to 95 gsm – USA 24lb MICR (other papers subject to qualification) Single Ply, long or short grain, 85 to 95 gsm – USA 24lb MICR (other papers subject to qualification) Single Ply, long or short grain, 85 to 95 gsm – USA 24lb MICR (other papers subject to qualification) Single Ply, long or short grain, 85 to 95 gsm – USA 24lb MICR (other papers subject to qualification)
Power Requirement 240 Volts single phase 240 Volts single phase 240 Volts single phase 240 Volts single phase 240 Volts single phase 240 Volts single phase
Interface Dataproducts parallel Dataproducts parallel Dataproducts parallel Dataproducts parallel Dataproducts parallel Dataproducts parallel
Computer MS DoS comparable system with VGA colour monitor, 3.5″ diskette, 40mb Disc and 102 key enhanced keyboard. MS DoS comparable system with VGA colour monitor, 3.5″ diskette, 40mb Disc and 102 key enhanced keyboard. MS DoS comparable system with VGA colour monitor, 3.5″ diskette, 40mb Disc and 102 key enhanced keyboard. MS DoS comparable system with VGA colour monitor, 3.5″ diskette, 40mb Disc and 102 key enhanced keyboard. MS DoS comparable system with VGA colour monitor, 3.5″ diskette, 40mb Disc and 102 key enhanced keyboard. MS DoS comparable system with VGA colour monitor, 3.5″ diskette, 40mb Disc and 102 key enhanced keyboard.
Software Inotech PRIMEX Inotech PRIMEX Inotech PRIMEX Inotech PRIMEX Inotech PRIMEX Inotech PRIMEX
Environmental Temp. 60 to 80 deg F, Humidity 25-75% Temp. 60 to 80 deg F, Humidity 25-75% Temp. 60 to 80 deg F, Humidity 25-75% Temp. 60 to 80 deg F, Humidity 25-75% Temp. 60 to 80 deg F, Humidity 25-75% Temp. 60 to 80 deg F, Humidity 25-75%

All specifications are preliminary and subject to change.

*Use of multipart forms is subject to qualification

A dedicated clean line mains supply is required for the above system.

An uninterpretable power supply is required for installations where the continuity of the mains supply cannot be guaranteed.
