IMP Series
Continuous MICR Encoder
The Inotech MICR PRODUCTS IMP continuous stationary MICR encoder is cost effectively designed to print high quality MICR codelines for low volume applications using heavy duty proven impact technology, giving low reject rate on cleared documents. The IMP can linked in tandem to a variety of impact and non impact printers to provide a full personalization system producing up to 7,500 fully personalized cheques per hour.
The IMP is manufactured to high quality standard to give high reliability to meet both production and office environments with simple user friendly operation.
The IMP can be driven from existing Inotech software or from new windows based PReS software.

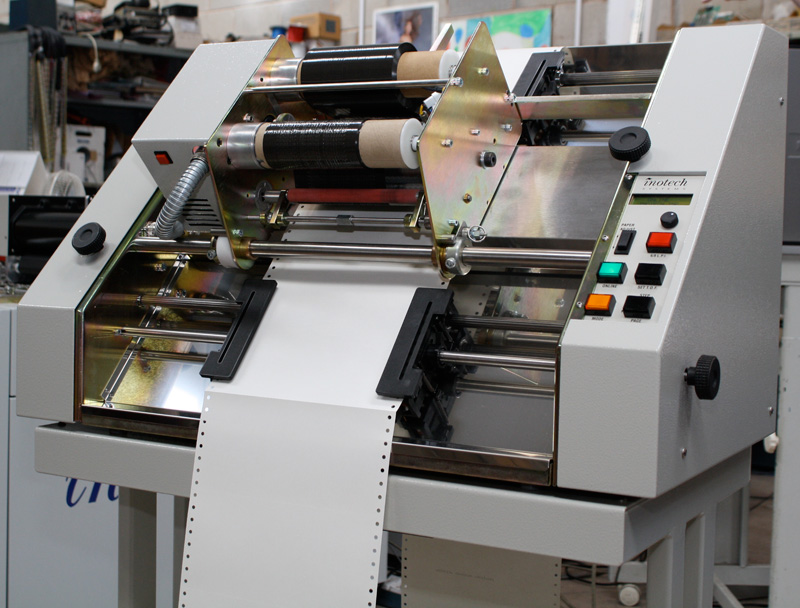

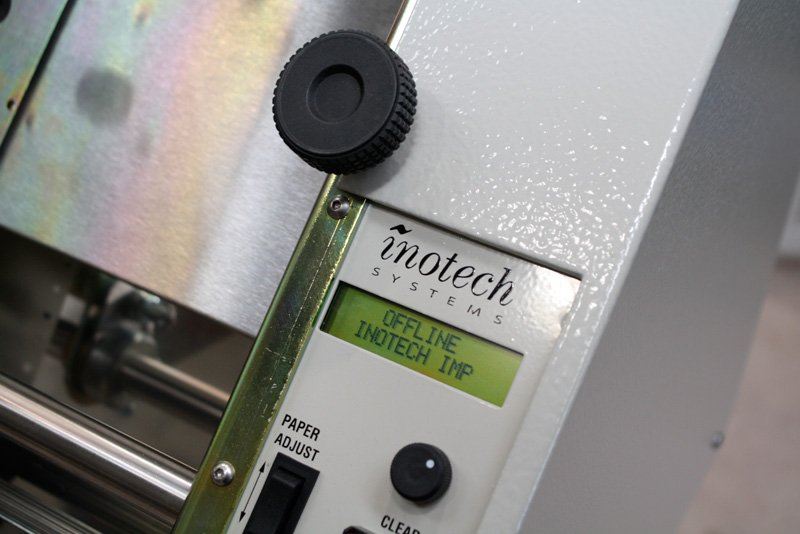

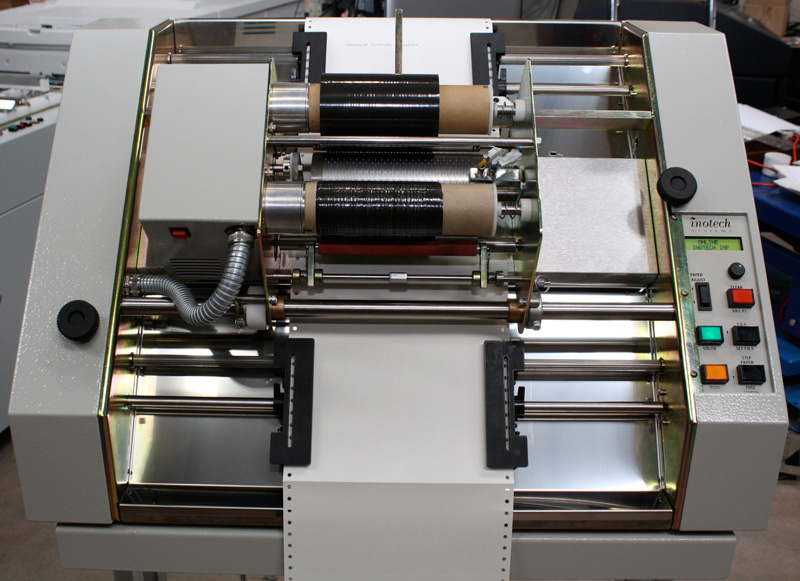

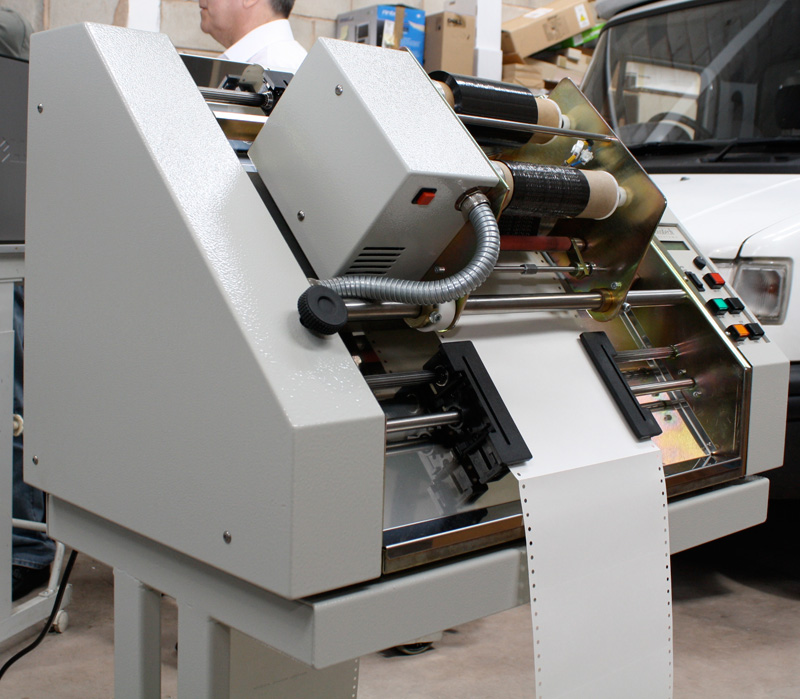

IMP Series Images
IMP Series Specifications
| Paper Type | From 75gsm to 180gsm. Multi-part sets can be handled, please check with supplier. |
| Throughput | 7,500 x 3 inch documents per hour printing one MICR codeline per document. |
| Print Width | 6 inches width, 48 column drum E13B chequerboard layout. |
| Paper Width | 23 inches edge to edge |
| Horizontal Pitch | 8 characters per inch |
| Vertical Pitch | 6 or 8 lines per inch |
| Interface | Centronics parallel Fully compatible with Inotech Primex software or PreS software. |
| Consumables | Single strike MICR ribbons 105x175mm |
| Dimensions | H 440mm W 760mm D 440mm (excluding standard) |
| Weight | 65kg |
| Power Requirement | Single Phase 220Vac 50Hz 4amp 110 Vac 60Hz 8amp Dedicated clean line required. |
| Environment | Temperature 60 to 80 deg F Humidity 25% to 70% non-condesing |
All specifications are preliminary and subject to change.
*Use of multipart forms is subject to qualification
A dedicated clean line mains supply is required for the above system.
An uninterpretable power supply is required for installations where the continuity of the mains supply cannot be guaranteed.
Inquire about the IMP Series
