HVT Series
Tandem MICR Personalisation System
The Inocheque HVT-L Series Tandem MICR Personalisation Systems offer a complete solution for the Micr encoding and text personalisation of continuous forms cheques, using the combination of well-proven impact and non-impact technologies.
Variable fonts, logos and barcodes are first printed on the continuous forms laser printer and then passed into the Inotech IE Micr encoder for the corresponding MICR code line to be printed under the control of Windows-based Pres Software.
The lowest speed of the system is the HVT-120 and can fully personalise more than 20,000 x3 inch cheques per hour on a single ply sprocketed continuous forms and is ideal for high volume applications.
For applications that require multi-part sets to be both MICR encoded and fully personalised, Inotech HVT-I tandem solution based upon the Inotech IE MICR printer connected to another IE text impact printer.

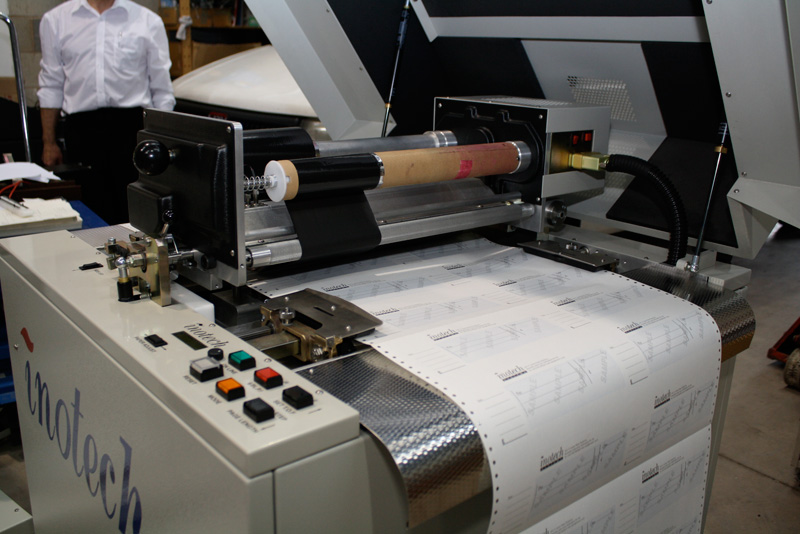

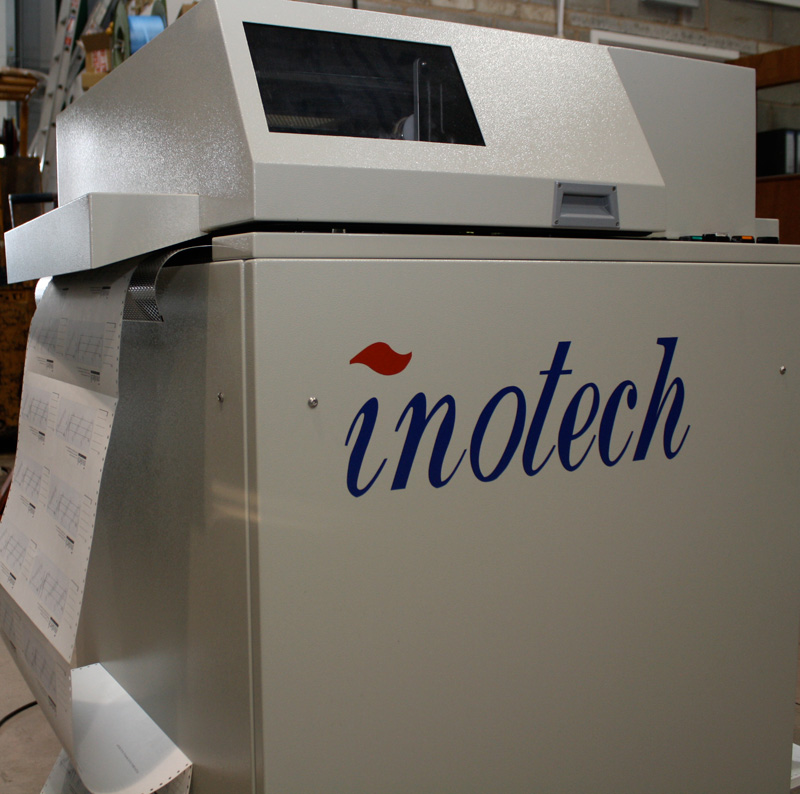

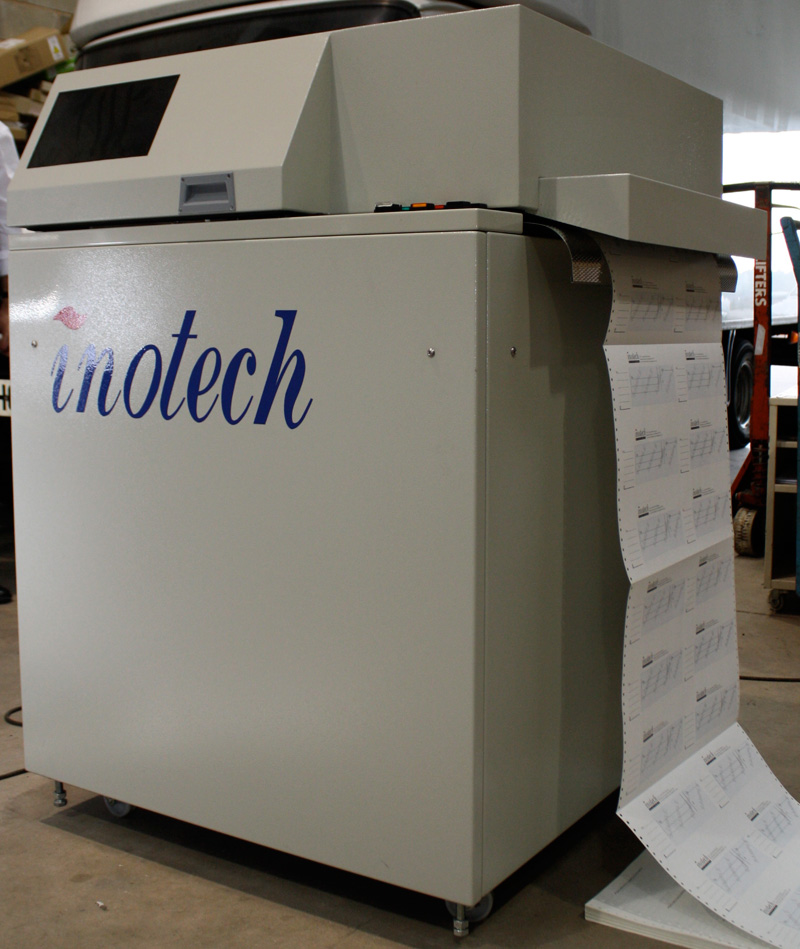

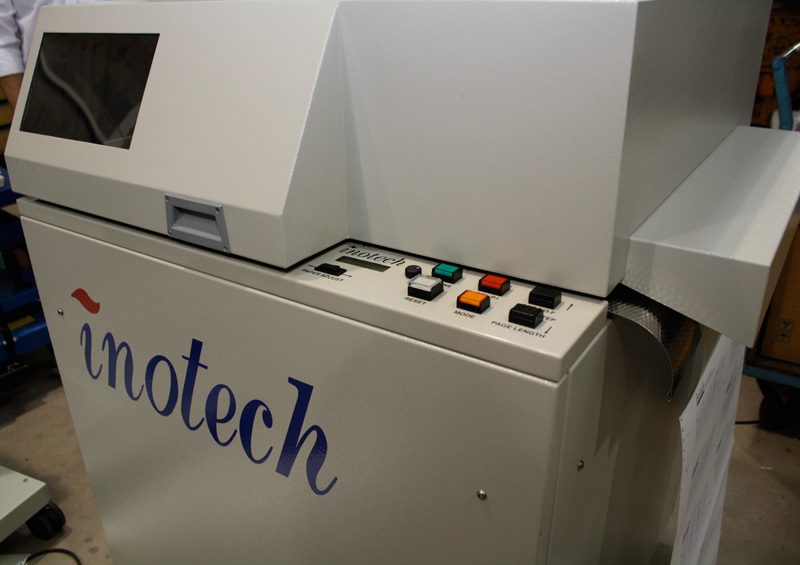

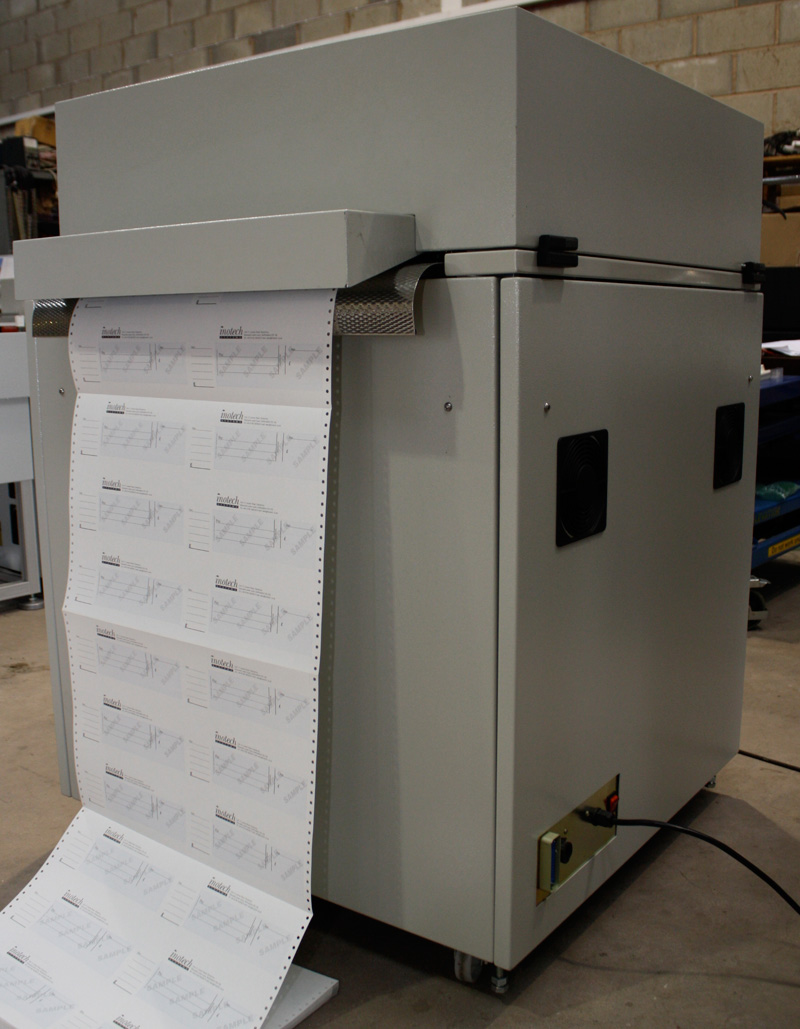

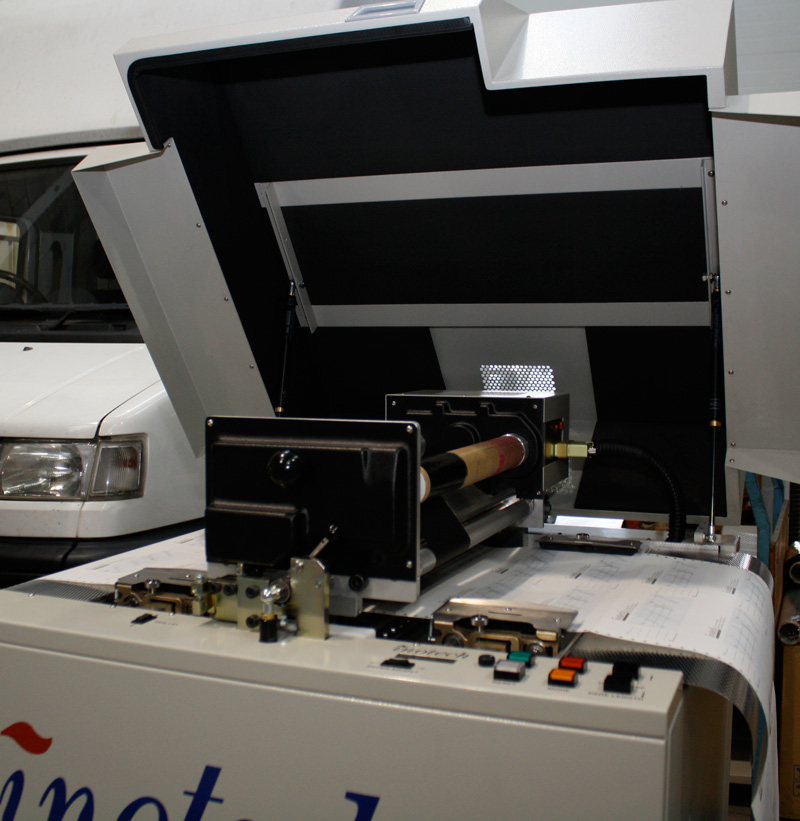

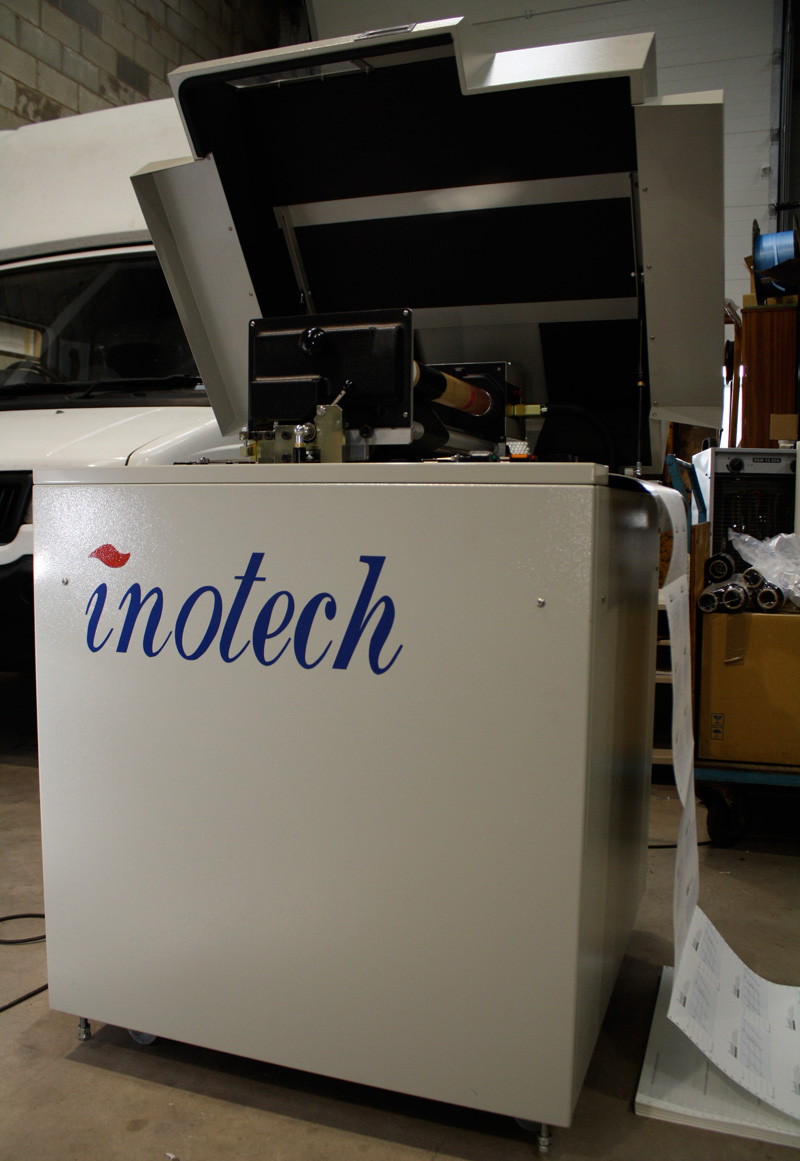

HVT Series Images
HVT Series Specifications
| Paper Type | Continuous sprocket fed:
MICR Printer: 80 to 180gsm |
| Throughput | HVT 120: 20,300 per hour (IE based system)
HVT 260: 44,160 per hour (IE based system) |
| Print Width | IE MICR Printer: 15 or 18 in of E13B or CMC7 available.
Laser Printers 120ppm and 260ppm: 18in |
| Paper Width | IE MICR Printer: 23 in
Laser Printers 120ppm and 260 ppm: 18 in |
| Horizontal Pitch | 8 c.p.i or 10 c.p.i dependent on model |
| Vertical Pitch | 6 or 8 lines per inch |
| Interface | Dataproducts parallel, centronics (optional) |
| Print Drums | E13B, E13B + Arabic numbers, CMC7 OCR, Custom Drum (contact supplier) |
| Features | Multi forms (chequreboard drum)* Electronic DAFU Dataproducts CP300/440/SD etc code compatability In build diagnostics LCD Display |
| Dimensions | IE MICR Printer: 820x1240x865mm
Laser Printer 120ppm: 965x1223x985mm Laser Printer 260ppm: 910x1422x914mm (WxHxD) |
| Weights | IE MICR Printer: 220kg
Laser Printer 120ppm: 330kg Laser Printer 260ppm: 690kg |
| Width | 32 inches |
| Depth | 34 inches |
| Power Requirement | IE MICR: 220 Vac, 2.5kVa, single phase
120ppm Laser Printer: 220 Vac, 2.5kVa single phase 260ppm laser printer: 380/400 Vac, 6.5kVa, 3 phase. |
| Environment | Temperature 60 to 80 deg F Humidity 25% to 70% non-condensing |
All specifications are preliminary and subject to change.
*Use of multipart forms is subject to qualification
A dedicated clean line mains supply is required for the above system.
An uninterpretable power supply is required for installations where the continuity of the mains supply cannot be guaranteed.
